Welding End Preparations

HOME > 제품소개 > Welding End Preparations
  • ASME B16.9
  • KS/JIS

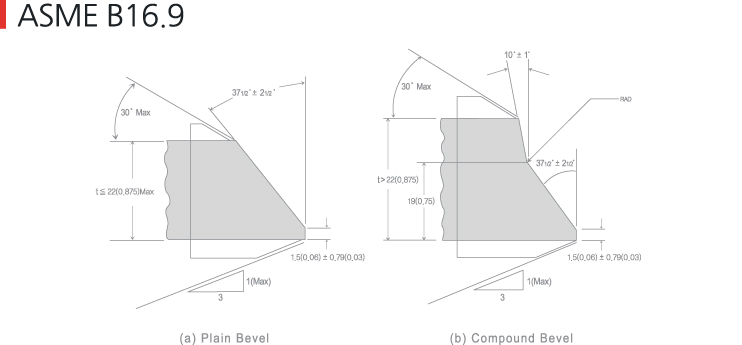

asme b16.9
Nominal Pipe Wall
Thickness(t)		 End Preparation
Less than X* Cut square of slightly chamfer, at mfr's. option
X* to 22(0.875), inclusive Plain bevel as in sketch (a) above
More than 22(0.875) Compound bevel as in sketch (b) above
X*=5(0.19) for carbon steel, ferritic alloy steel or wrought iron;
3(0.12)for austenitic alloy steel
Notes

1.End preparations are in accordance with ASME B16.25 Paragraph 4.2
2.End preparations conforming to customer specifications will be
specially manufactured upon consultation.

KS / JIS

01.

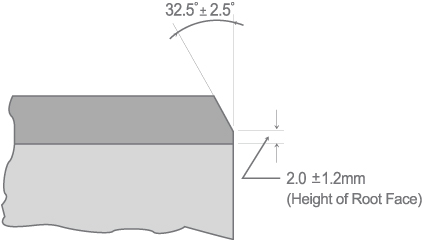

Steel Butt-Welding Pipe Fittings for Ordinary Use. [KS B 1522 / JIS B 2311]

ksjis01

02.

Steel Butt-Welding Pipe Fittings for Special Use. [KS B 1541 / JIS B 2312]

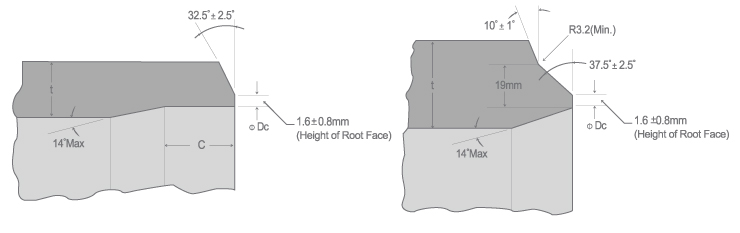

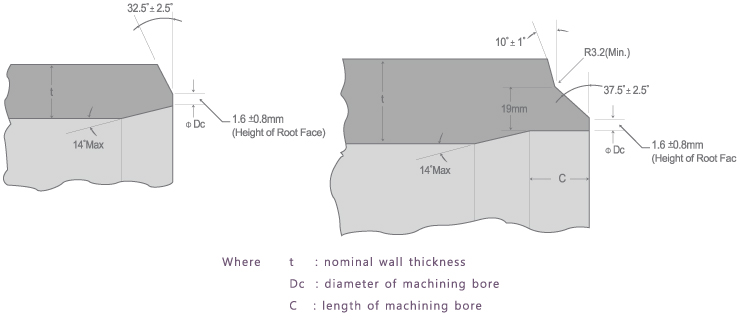

A : In the Case Where t is 19mm or Less B : In the Case Where t is Over 19mm ksjis02 C : In the Case Where t is 19mm or Less D : In the Case Where t is Over 19mm ksjis03
Remarks

1.Diameter(Dc) and length(C) of machining bore and dimensional tolerances shall be as agreed
between parties concerned.
2. Relieving of machining bore may be performed by providing an inclination of 14˚ or less from
the end face to the limits of 1.5 times the wall thickness, or after cutting to the cylindrical surface
to the length of machining bore, providing an inclination of 14˚ or less to the limits above-indicated,
and beyond that portion machining with an ilclination of 45˚ or less.

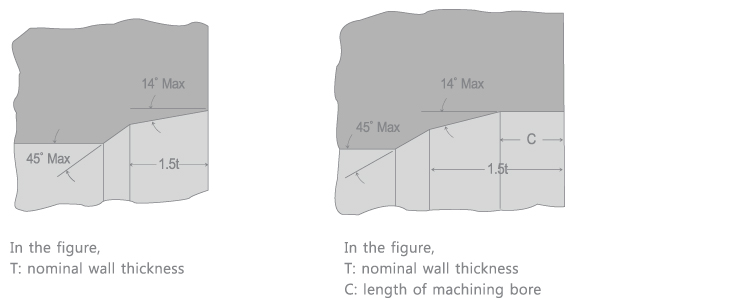

For Types A and B of Bevel Shape For Types C and D of Bevel Shape ksjis04

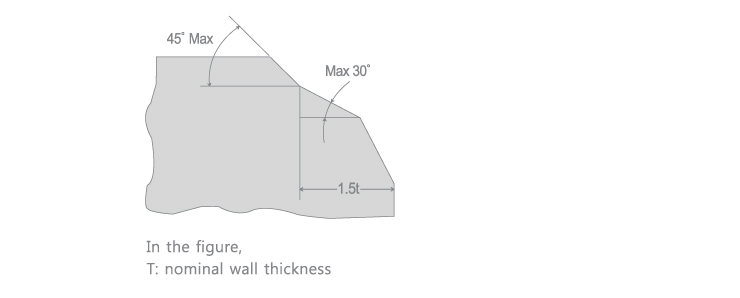

Relieving for outside diameter may be performed by providing an inclination of 30˚ or less from the
end face to the limits of 1.5 times the wall thickness, and beyond that portion machining with
an inclination of 45˚ or less.

ksjis05

03.

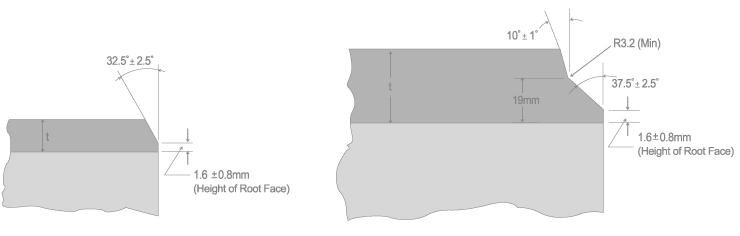

Steel Plate Butt-Welding Pipe Fittings. [KS B 1543 / JIS B 2313]

ksjis06
Remarks

The shape and dimensions of the special bevel ends are referred to the reference clause
stated in KS B1541, JIS B 2312
